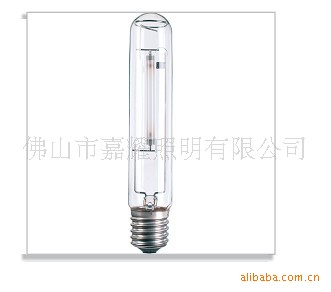

飛利浦高壓鈉管 SON-T1000W 直管型鈉管

N-T 1000W/220 E40 1SL

一般特性

系統描述外部                                                 觸發器

燈頭座                                          E40

玻殼                                            T65 [T 65mm]

玻殼端口                                         透明

運行位置                                         任意[任意或(U)]

5％失效時壽命                                   8000 hr

10％失效時壽命                                  10000 hr

20％失效時壽命                                  13000 hr

50％失效時壽命                                  20000 hr

LSF場致發光片,額定12000小時，12小時循環       85 %

LSF場致發光片,額定16000小時，12小時循環       69 %

LSF場致發光片,額定20000小時，12小時循環       50 %

LSF場致發光片,額定2000小時，12小時循環         99 %

LSF場致發光片,額定4000小時，12小時循環        99 %

LSF場致發光片,額定6000小時，12小時循環         97 %

LSF場致發光片,額定8000小時，12小時循環        95 %

飛利浦高壓鈉管 SON-T1000W 直管型鈉管

電氣特性

額定光源功率                                    1000 W

燈電壓                                          100 V

燈電流(配電感鎮流器時)                                   10.6 A

觸發時間                                        10 s

運行時間90%                                                6 min

可調光                                          Yes

光源功率，EM 25°C，額定                       960 W

光源功率，電磁25°C，標稱                       1000 W

環境特性

汞（Hg）含量                                    38 mg

照明燈技術特性

色標                                             220 [CCT of 2000K]

顯色指數                                        25 Ra8

色溫                                            2000 K

色溫技術                                        2100 K

色度坐標X                                                     515 -

色度坐標Y                                                     420 -

平均亮度EM                                                   650 cd/cm2

照明效率,額定場致發光片25°C                          130 Lm/W

LLMF場致發光片,額定20000小時                 80 %

LLMF場致發光片,額定16000小時                 84 %

LLMF場致發光片,額定12000小時                 88 %

LLMF場致發光片,額定8000小時                   92 %

LLMF場致發光片,額定6000小時                  94 %

LLMF場致發光片,額定4000小時                  96 %

LLMF場致發光片,額定2000小時                  98 %

光通量，場致發光片25°C，額定                   130000 Lm

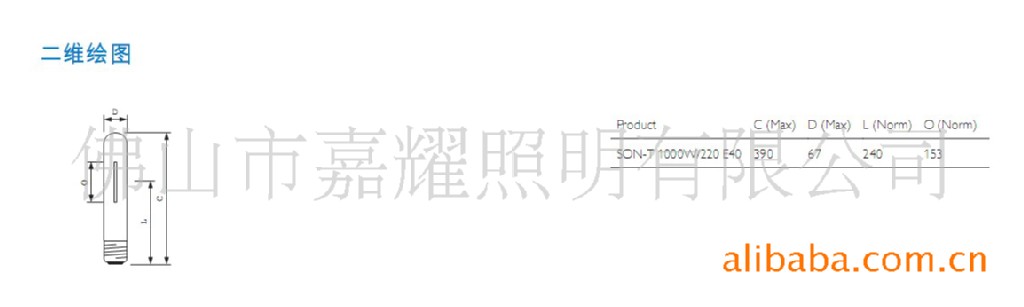

產品尺寸

總長C                                                          390 mm

直徑D                                                          67 mm

光中心長度L                                                  240 mm

弧長O                                                         153 mm

燈具設計要求

燈頭燈座溫度                                    250 C

燈管溫度                                        450 C
